In the fields of medical imaging, tumor radiotherapy, nuclear power operation and maintenance, industrial non-destructive testing, etc., the performance of radiation shielding materials directly determines the accuracy of equipment, personnel safety and operational compliance. With the tightening of global environmental protection policies and the upgrading of medical and nuclear power equipment, tungsten heavy alloy has become the core preferred material in the field of advanced radiation shielding due to its ultra-high shielding efficiency, safety and environmental protection, and excellent mechanical properties.

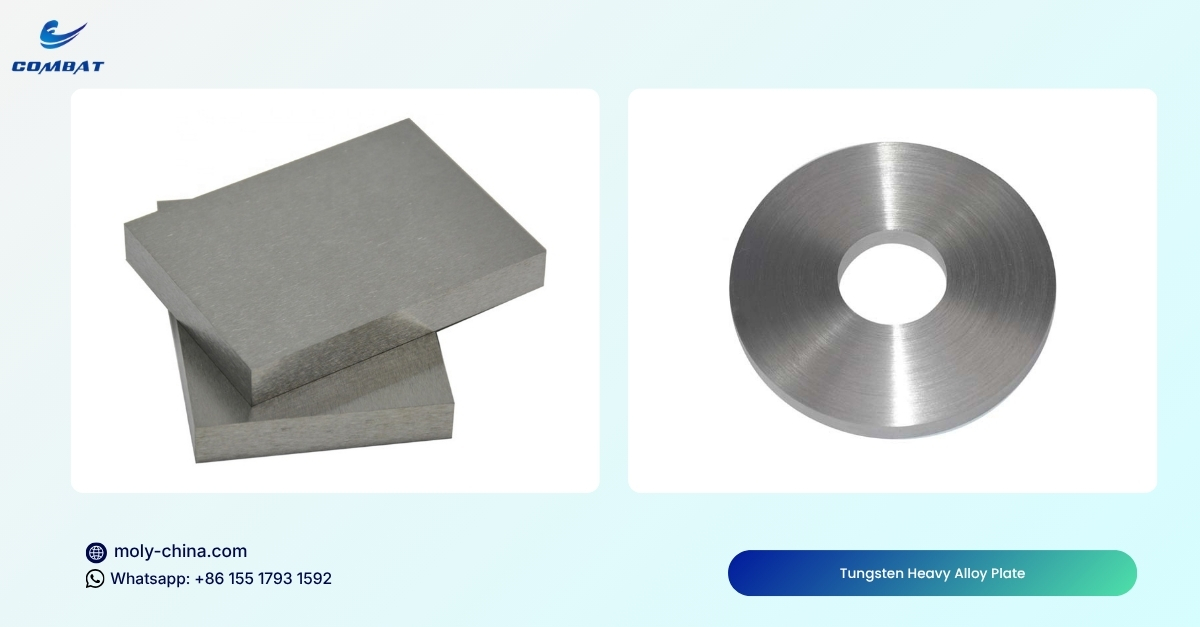

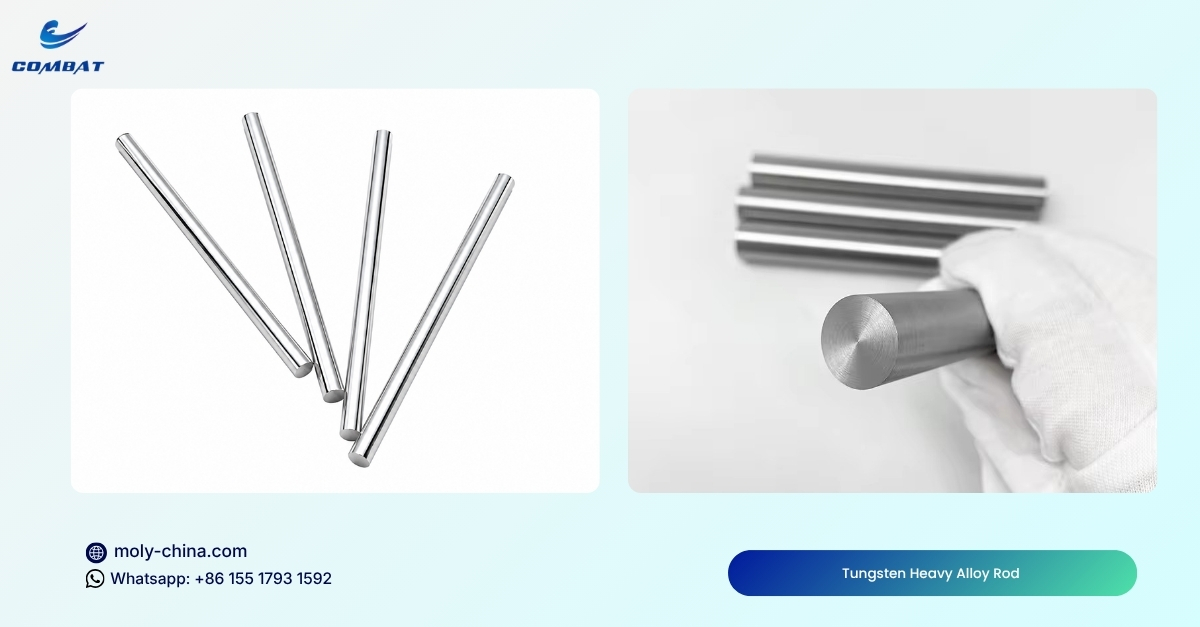

What is Tungsten Heavy Alloy? Core Features

Tungsten Heavy alloy is often called high-density tungsten alloy, which is a high-density composite metal material with tungsten as the core substrate.The tungsten content is usually controlled at 85%-98%, and the mainstream commercial models are 90%-97%. The remaining components are composed of nickel, iron, copper and other bonded metals.

The core purpose of R&D and production of tungsten heavy alloy is to make up for the application defects of pure tungsten materials. Pure tungsten has extremely high density and top radiation absorption properties, but it is highly brittle, extremely difficult to process, and expensive to produce. Precision shielding components cannot be made in batches.The tungsten alloy perfectly retains more than 95% of the density and shielding properties of pure tungsten, while greatly improving the toughness, ductility and processability of the material, and is suitable for the molding and production of various complex components.

4 Tungsten Alloy Grades

According to ASTM B777 international general standard, tungsten heavy alloy is divided into four grades, which are adapted to the needs of different shielding scenarios.

Grade 1 (90% tungsten content) density 17.0g/cm3, best toughness and processability；

Grade 2 (92.5% tungsten content) with a density of 17.5g/cm3, balanced performance and the strongest versatility；

Grade 3 (95% tungsten content) density 18.0g/cm3, suitable for precision high-end shielding scenarios；

Grade 4 (97% tungsten content) has a density of 18.5g/cm3, and the shielding efficiency is extremely optimal.

Tungsten-nickel-iron alloy (WNiFe tungsten heavy alloy) has the advantages of high strength and high toughness, and has excellent mechanical properties. It is suitable for most general shielding scenarios and is slightly weakly magnetic. Tungsten-nickel-copper alloy (WNiCu tungsten heavy alloy) is a non-magnetic material with stronger corrosion resistance. It is specially adapted to special working conditions such as MRI equipment and precision sensing that have zero interference with the magnetic field.

Principle of Tungsten Alloy Shielding Radiation

The core principle of radiation shielding is to consume and block the energy of ionizing radiation such as X-rays and gamma rays through the physical reaction of materials and rays, so as to avoid radiation pollution and personal injury caused by ray penetration. The shielding efficiency of a material is mainly determined by the two core indicators of density and atomic number.

High density means that there are more atoms per unit volume, which can form a denser ray interception barrier. The density of tungsten heavy alloy can reach 17.0-18.5g/cm3, up to 18.8g/cm3, which is more than twice that of steel (7.8g/cm3) and 1.5-1.7 times that of lead (11.3g/cm3). Under the same shielding thickness, tungsten alloy's absorption capacity of X-rays and gamma rays far exceeds that of lead, and its shielding advantages for high-energy gamma rays such as cobalt 60 are particularly prominent.

Advantages of tungsten alloy for radiation shielding

1. Extremely compact

Modern medical equipment and precision testing instruments are generally developing in the direction of miniaturization and integration, and the shielding space reserved inside the equipment is extremely limited. With its ultra-high density, tungsten heavy alloy can achieve high-standard shielding effect in a very small size and ultra-thin thickness. Compared with lead materials, the volume is reduced by 30%-40% under the same protection level, which is perfectly adapted to space-restricted scenarios such as medical collimators, isotope shielding cans, and portable testing equipment, and provides core support for the lightweight and refined design of equipment.

2. Safe and non-toxic

The heavy metal toxicity of lead materials is a long-term pain point in the industry. Long-term exposure will endanger the health of operators, and the waste, recycling, and disposal of lead products are strictly restricted by environmental regulations, and the cost of corporate compliance is extremely high.

Tungsten alloy is a green and environmentally friendly shielding material. It is non-toxic and non-radioactive in itself. There is no need for special environmental protection control in the whole process of production, use, and scrap.It not only guarantees the personal safety of medical staff and technical operators, but also significantly reduces the cost of environmental protection compliance and operation and maintenance pressure of enterprises, which is in line with the global development trend of green manufacturing and safe production.

3. Excellent mechanical properties

The traditional lead material has a soft texture, and it is easy to sag, deform, and creep under force. Long-term use will cause problems such as damage and displacement of the shielding layer, which will cause the shielding to fail, require frequent maintenance and replacement, and have high operation and maintenance costs.The tensile strength of tungsten alloy can reach 700–1000MPa, the strength is comparable to that of medium carbon steel, and the mechanical stability is excellent. At the same time, it has excellent thermal stability, high temperature resistance and low coefficient of thermal expansion. It will not deform and fail due to the heat generated by radiation decay. It can maintain stable shielding performance for a long time and its service life far exceeds that of traditional shielding materials.

4. Can be precision machined

Pure tungsten material has high hardness and high brittleness, and it is extremely difficult to process. It cannot make high-precision shielding parts with complex structures, and its application scenarios are severely restricted.Whether it is a multi-leaf collimator with a complex structure, a special-shaped medical shield, a high-precision isotope storage container, or a microporous ray baffle, tungsten alloy can be formed and processed with high precision to meet the precision and customization needs of shielding components in the fields of medical, scientific research, and nuclear power.

5. Customized selection

Tungsten alloy supports the customization of magnetic and non-magnetic versions, which are suitable for differentiated special working conditions. WNiFe tungsten heavy alloy is suitable for general industrial and nuclear power scenarios, with high cost performance and stable performance. Non-magnetic WNiFe tungsten heavy alloy will not produce magnetic field interference, and can be safely used in MRI nuclear magnetic equipment, precision optical instruments, and magnetic field-sensitive scientific research equipment.

Tungsten alloy VS traditional radiation shielding material

In order to more intuitively reflect the comprehensive advantages of tungsten alloy, the following compares the five mainstream radiation shielding materials from the dimensions of density, shielding efficiency, safety, durability, cost, and compliance to help companies quickly select and adapt to working conditions.

1. Tungsten heavy alloy VS lead material

Lead is a traditional shielding material with low cost and simple processing, which is suitable for large-scale fixed and low-requirement static shielding scenarios. However, its density is low, and shielding the same rays requires a larger thickness and volume, which cannot be adapted to precision equipment. At the same time, lead is toxic, environmental protection is strictly controlled, it is easy to deform and fail after long-term use, and its durability is poor.Tungsten alloy shielding efficiency is 1.5-1.7 times that of lead, and it is more compact in size, higher in strength, non-deformed, non-toxic and environmentally friendly.

2. Tungsten heavy alloy VS depleted uranium

The density of depleted uranium is close to that of tungsten heavy alloy, and the shielding performance is slightly better, but the defects are extremely obvious.Depleted uranium is inherently radioactive, has radiation safety risks, and is strictly regulated by NRC and other agencies. The procurement, use, and disposal processes are cumbersome, and the cost of compliance is extremely high. At the same time, the processing process has the risk of spontaneous combustion and poor safety.Tungsten heavy alloy is non-radioactive, has no processing risks, and has a low regulatory threshold. Its shielding performance lags only slightly behind that of depleted uranium, but it leads in comprehensive safety, practicality, and compliance.

Tungsten alloy shielding component manufacturing process

The excellent performance of tungsten heavy alloy shielding components, relying on the mature powder metallurgy liquid phase sintering process, can accurately control the density, purity and accuracy throughout the process, to ensure that the shielding performance of each batch of products is stable and consistent, and there is no performance deviation.

1. Powder ratio and mixing

Tungsten heavy alloy manufacturers use high-purity tungsten powder and bonded metal powder, in strict accordance with ASTM standards, to accurately control the proportion of tungsten content.Through the ball milling and mixing process, the powder is evenly fused, the composition deviation is eliminated, and trace additives are added to optimize the sintering effect. The raw materials can be traced throughout the process, and they are suitable for high-demand scenarios in medical and nuclear power.

2. Pressing and forming

The molding process is selected according to the structure of tungsten heavy alloy components. The one-way molding process is used for simple plate and cylindrical components, and the cold isostatic pressing process is used for complex special-shaped, hollow, and high-precision components.The size of the pressed raw blank reserves the processing margin, the density is uniform and the structure is dense, which lays the foundation for subsequent sintering and molding.

3. Liquid phase sintering

The raw blanks are sintered at high temperature in a hydrogen-protected atmosphere, and the temperature is accurately controlled at 1450-1520℃.The bonded metal melts and flows, and the tungsten powder gap is filled by capillary action to achieve more than 99% densification. The finished product has no pores and no defects. The tungsten heavy alloy shielding performance is uniform and stable, and there will be no local shielding failure.

4.Post-processing and finishing

Sintered blanks can be forged and heat treated according to demand to optimize mechanical strength and toughness.Then, through precision processes such as turning and milling, grinding, and electric discharge machining, it is processed into finished components such as collimators, shields, and storage tanks required by customers, and the accuracy can meet the assembly needs of high-end equipment.

Finally, professional tungsten heavy alloy manufacturer support quality inspection and certification. The finished products are tested one by one for density, dimensional accuracy, mechanical properties, and shielding efficiency. Tungsten heavy alloy part for medical and nuclear power can provide a full set of material certification, test reports and traceability documents, which fully comply with industry acceptance standards.

Application of Tungsten Alloy Radiation Shielding Components

1. Medical and nuclear medicine

The tungsten heavy alloy shielding parts for medical field are the most widely used and demanding.

Tungsten heavy alloy component in tumor radiotherapy equipment can accurately shape the radiation beam and accurately focus high-energy rays on tumor lesions, greatly reducing the damage of scattered rays to surrounding healthy tissues, and improving the accuracy and therapeutic effect of radiotherapy.

In nuclide diagnosis and treatment scenarios, custom tungsten heavy alloy shields, medicine bottle shields, and isotope storage containers can effectively protect medical staff from radiation damage during dispensing, administration, and transportation, in line with ALARA's minimum radiation exposure safety guidelines.

At the same time, the internal high density tungsten alloy shielding components of imaging equipment such as CT, PET, MRI, etc. are mostly made of non-magnetic tungsten-nickel-copper alloy(WNiFe), which not only realizes efficient ray shielding, but also does not interfere with the accuracy of the magnetic field of the equipment and guarantees the clarity of the image.

2. Nuclear power and scientific research

Tungsten heavy alloy in nuclear industry is used for radioactive source fixing brackets, tungsten heavy alloy radiation shielding baffles, nuclear waste transfer liners, reactor penetrating parts shielding and other components. Tungsten heavy alloy plate has strong stability, high temperature resistance and corrosion resistance, can be adapted to the harsh working conditions of nuclear power for a long time, and stably blocks gamma-ray radiation.

In scientific research scenarios such as high-energy physics, particle accelerators, and synchrotron radiation laboratories, tungsten alloy shielding baffles, ray cutters, and beam collimating components can accurately control the range of rays, block stray radiation, and ensure the safety of experimental equipment and researchers.

3. Industrial non-destructive testing and security field

Industrial ray non-destructive testing (NDT) equipment and industrial X-ray flaw detectors need to accurately shield scattered rays to avoid radiation pollution in the workshop.Tungsten alloy shielding cover, ray cut-off block, and equipment protective shell are compact in size and efficient in shielding, which are suitable for the high-frequency operation needs of industrial testing equipment.

In port security inspection and cargo scanning equipment, tungsten alloy shielding components can effectively block the scattered lines of equipment, avoid radiation leakage, and ensure the safety of personnel in public areas. At the same time, the volume of equipment is streamlined and the degree of equipment integration is improved.

4. Oil and gas underground exploration field

The underground detection equipment for oil and gas exploration will be equipped with a radioactive ray source for formation data detection.The underground space is small, the working conditions are humid and corroded, and the traditional shielding materials are large in size, easy to corrode, and easy to deform, and cannot be adapted to the needs of the operation.

Tungsten alloy shielding casing and shielding shell of detection instruments, relying on the advantages of compact size, corrosion resistance and high stability, can achieve efficient radiation shielding in a small underground space, ensuring the stable operation of detection equipment and the safety of underground operations.

How to choose tungsten heavy alloy shielding material?

The selection of tungsten heavy alloy radiation shielding directly determines the final shielding effect, equipment adaptability, service life and overall project cost. It is a key link in engineering design, equipment procurement and process landing. The following combines the official ASTM B777 standard and COMBAT's many years of industry manufacturing experience to refine the tungsten alloy selection process.

Selected ASTM B777 alloy density grade

The proportion of tungsten content of tungsten alloy directly determines the material density and ray attenuation ability, and at the same time affects the toughness, ductility and processability of the material in reverse. The grade difference corresponds to a clear applicable scenario, and the problem of excess performance or insufficient protection can be avoided by precise distinction.

ASTM B777 Grade 4 tungsten heavy alloy: With a tungsten content of 97% and a density of 18.5g/cm3, it is the grade with the highest density and the best shielding efficiency among commercial shielding alloys. It has a strong ability to intercept high-energy gamma rays and high-intensity X-rays.This grade of material has high hardness, low toughness, and slightly large processing loss. It is only recommended for scenarios where the space is extremely small, the shielding requirements are extremely stringent, and there is no need for complex finishing, such as miniature shielding components for high-end radiotherapy equipment, core shielding parts for precision scientific research instruments, and portable high-energy ray protection devices.

ASTM B777 Grade 3 tungsten heavy alloy: Tungsten content is 95%, density is 18.0g/cm3, high shielding performance, while retaining moderate toughness and processing performance, the overall balance is optimal.As the mainstream preferred grade in the fields of medical and nuclear power, it is widely adapted to medical multi-leaf collimators, isotope shielding cans, nuclear power small shielding baffles, and industrial high-end flaw detection equipment shielding components. It is a general benchmark model for high-end precision shielding scenarios.

ASTM B777 Grade 2 tungsten heavy alloy: Tungsten content is 92.5%, density is 17.5g/cm3, balanced performance, convenient processing, outstanding cost performance, and no obvious performance shortcomings.It is suitable for most general industrial shielding scenarios, such as conventional industrial non-destructive testing shielding housings, large shielding plates, and auxiliary shielding parts for ordinary medical equipment. It is especially suitable for customized tungsten heavy alloy components that require complex milling, punching, and special-shaped processing.

ASTM B777 Grade 1 tungsten heavy alloy: Tungsten content is 90%, density is 17.0g/cm3, toughness, ductility, and impact resistance are the highest of the four grades, the lowest processing difficulty, and it is not easy to crack and deform.The shielding performance of this level is relatively weak, and it is preferred for scenarios with high mechanical strength requirements, sufficient shielding space, and low ray energy, such as frequently transported shielding blocks, equipment counterweight shielding integrated components with greater force, and special-shaped complex customized shielding parts.

Magnetic and non-magnetic alloy materials

In the fields of precision medicine, optical scientific research, and high-end testing, magnetic field interference can directly lead to equipment data deviation, blurred imaging, and detection failure. Therefore, magnetic selection is an easily overlooked but vital link, and the operating environment of the equipment needs to be strictly matched.

Tungsten-nickel-iron tungsten alloy (WNiFe) is a conventional magnetic material with the advantages of high strength, high toughness and low cost. It is the most widely used general-purpose model on the market.The material is slightly weakly magnetic, and it is fully suitable for general scenarios of non-magnetic field sensitive equipment, including conventional shielding of nuclear power, industrial non-destructive testing equipment, oil and gas underground detection shielding, ordinary radiotherapy equipment, and general ray storage containers. The working conditions are stable and cost-effective.

Tungsten nickel copper is a non-magnetic tungsten-based heavy metal (WNiCu) with a magnetic permeability ≤1.05, which can achieve zero magnetic field interference, and at the same time has better corrosion resistance and oxidation resistance.The strength of WNiCu alloy is slightly lower than that of tungsten-nickel-iron alloy（WNiFe） , and the procurement cost is slightly higher. It is a special customized model and must be used in magnetic field-sensitive working conditions, including MRI nuclear magnetic resonance supporting shielding components, PET-CT integrated imaging equipment, precision optical testing equipment, electron beam scientific research equipment, and high-precision sensor peripheral shielding components to completely eliminate the problem of magnetic field interference with the accuracy of the equipment.

Frequently Asked Questions

Q1: Is the shielding effect of tungsten alloy better than that of lead?

Yes, in most precision and high-end working conditions, tungsten alloy is comprehensively superior to lead. At the same thickness, the shielding efficiency of tungsten heavy alloy for X-rays and gamma rays is 1.5-1.7 times that of lead, and only two-thirds of the thickness of lead is required to achieve the same protective effect. At the same time, tungsten alloy is non-toxic and environmentally friendly, has high strength, no deformation, and stronger durability. Only for large-scale fixed low-budget scenarios, lead still has a cost advantage.

Q2: Is tungsten alloy toxic and radioactive?

It is completely non-toxic and non-radioactive, and is a safe and environmentally friendly green shielding material.The material itself will not release radiation, there is no toxic hazard of heavy metals, and there is no need for special environmental protection approval and control for production, use, and scrap. Operators can be in safe and long-term contact, in line with global production safety and environmental protection standards.

Q3: Which tungsten alloy grade should I choose for medical shielding scenarios?

For precision shielding components of medical multi-leaf collimators and imaging equipment, ASTM B777 grade 3 high-density heavy alloys are preferred for optimal shielding accuracy and efficiency; medical syringe shields and conventional nuclide storage containers can choose grade 2 tungsten heavy alloy, which are more cost-effective; non-magnetic tungsten-nickel-copper alloys (WNiCu) must be selected for components close to MRI equipment.

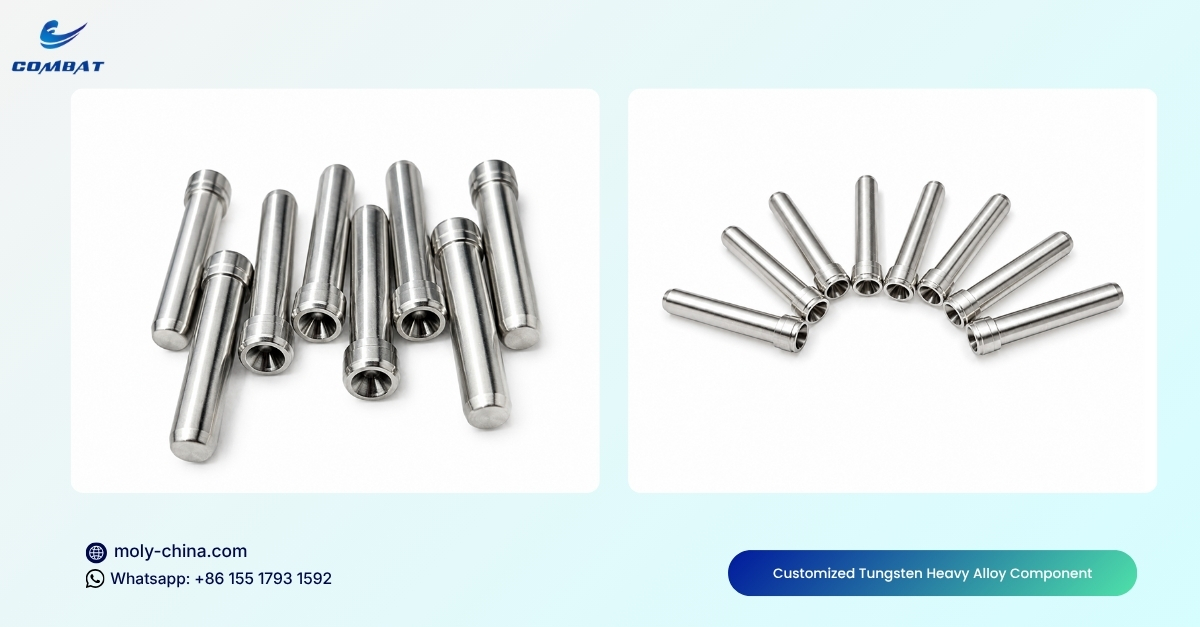

Q4: Does tungsten heavy alloy shielding component support customization?

Reliable tungsten material manufacturer support full-dimensional customization. Various special-shaped and high-precision shielding components can be processed according to customer drawings, and follow-up processing such as polishing, coating, and precision punching can be provided at the same time.

Conclusiom

With four dimensions of comprehensive shielding performance, safety and environmental protection, mechanical stability, and processing adaptability, tungsten alloy is currently the commercial radiation shielding material with the best overall performance.We can provide full-grade ASTM standard tungsten heavy alloy shielding plates, blocks, and precision customized components. Contact us to provide professional tungsten alloy metal material technical support.
