Molybdenum rods are the core product of molybdenum metal processing and an indispensable core component in critical areas such as aerospace, electronics and semiconductors, and high-temperature heat treatment.

What makes molybdenum rods suitable for extreme industrial use?

Physical properties of molybdenum rods

Molybdenum rods are characterized by an extremely high melting point of 2,620°C, which is much higher than that of most metals and allows them to be used in high-temperature applications such as high-temperature furnaces and rocket boosters. Molybdenum rods have high density (10.2-10.28g/cm³) and high thermal conductivity (130-138W/m-K), which can conduct heat quickly to avoid localized overheating; the low coefficient of thermal expansion effectively reduces thermal stresses and lowers the risk of deformation.

Chemical properties of molybdenum rods

Molybdenum rods are chemically extremely stable and not easily corroded in acid, alkali, oxidizing and reducing environments.

Molybdenum rods have outstanding low vapor pressure characteristics and are virtually free of volatile contamination in vacuum environments, making them ideal for vacuum furnaces, semiconductor manufacturing, and other scenarios that require high cleanliness.

Mechanical properties of molybdenum rods

Molybdenum rods maintain high tensile strength and creep resistance at high temperatures and are not easily softened or deformed.

Main types of molybdenum rods

COMBAT supplies high-quality molybdenum rods in bulk, including the following types:

Pure molybdenum rods (99.95%)

The molybdenum content of pure molybdenum rods is not less than 99.95%, common models Mo1 (≥99.93%), Mo2 (≥99.90%), in line with the GB 4188-84 standard, the high-end models can reach 99.99% or more. The advantages of high-purity molybdenum rods are cost-effective, versatile, with basic high-temperature resistance, electrical conductivity, easy to process and molding.

Molybdenum-lanthanum alloy rods (Mo-La Rod)

Doped with 0.4-1.2% lanthanum oxide, the rest is molybdenum and a few impurities. Mo-La rods can improve recrystallization temperature and ductility, stronger fatigue resistance, suitable for small cross-section, high temperature and high frequency cycling scenarios.

TZM Alloy Bar (Ti-Zr-Molybdenum)

With the addition of 0.4-0.6% titanium, 0.07-0.12% zirconium and 0.01-0.05% carbon, the tensile strength and creep resistance of TZM alloy rods are 300% higher than that of pure molybdenum rods, making them suitable for aerospace and high-stress industrial applications.

In addition, Mo-0.5 Ti alloy rods are 15% stronger than pure molybdenum rods and are specifically suited for semiconductors, sputtering targets, and other scenarios that require high precision and strength.

Classification by process

Forged molybdenum rods: Higher strength, suitable for structural components with high requirements for mechanical properties.

Ground molybdenum rods: high dimensional accuracy and smooth surface, suitable for the manufacture of precision components.

Extruded molybdenum rods: 99.95% purity, directional grain arrangement, stable performance, preferred for high-end scenarios such as aerospace and semiconductor.

Classification by surface state

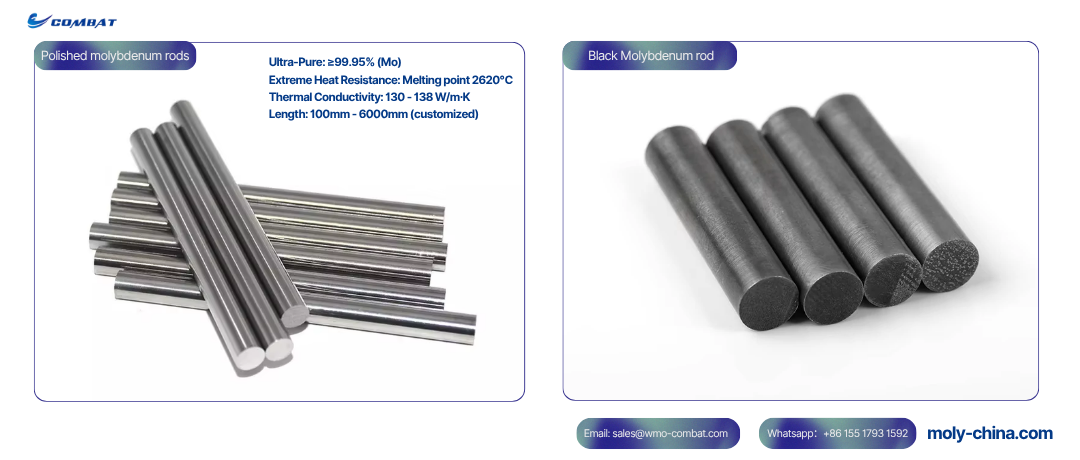

Black molybdenum rods: natural oxidized surface color, low processing costs, suitable for general-purpose scenarios that do not require a high degree of surface accuracy (e.g. ordinary high-temperature furnace heating elements).

Polished molybdenum rods: precision polished, smooth surface, high precision, to avoid impurity adhesion, suitable for electronics, precision medical equipment and other scenarios.

Molybdenum rods in different sizes

Molybdenum rods specifications are divided by diameter and form, and can be customized as required. Conventional diameter 1mm-150mm, fine diameter (1-10mm) for electronics, medical and other precision scenes, coarse diameter (10mm or more) for high-temperature furnaces, structural components and so on.

Special specification molybdenum rods including threaded molybdenum rods (vacuum furnace fasteners), ring molybdenum crystal rods (electronic and optical uses) are customized.

Applications of molybdenum rods in modern industry

Aerospace

Aerospace requires materials with high temperature resistance and high strength, and molybdenum rods are one of the first choices for core components.

Molybdenum rods are used in aerospace applications, including rocket propeller nozzles (e.g. SpaceX Raptor engines, which require 127 kg of extruded molybdenum rods per unit), spacecraft structural components, turbine components and more.

Extruded molybdenum rods and TZM alloy rods can withstand engine exhaust temperatures of 3300℃, with a strength-to-weight ratio of 2.5 times that of copper alloys, which guarantees the stable operation of spacecraft in extreme environments.

High-temperature furnace

High-temperature furnaces and heat treatment are the most basic and extensive application areas for molybdenum rods, covering a wide range of equipment such as vacuum furnaces and hydrogen atmosphere furnaces.

Molybdenum rods are used as heating elements, crucible supports, threaded fasteners, heat shields, etc. They are suitable for pure molybdenum rods and Mo-La alloy rods. Their low vapor pressure and high temperature resistance ensure cleanliness in the furnace and high resistance to thermal cycling, which prolongs the life of the equipment.

Molybdenum rods are used for ceramic sintering, metal heat treatment, single crystal growth, etc. Compared with stainless steel, molybdenum rods do not soften or creep at high temperatures, and are more stable.

Electronics and semiconductors

The core applications of molybdenum rods in electronics and semiconductors include heating elements for 3nm chip factories, vacuum tube components, leadframes, ion implantation components, etc. These rods are suitable for use with high purity pure molybdenum rods and Mo-0.5Ti alloy rods.

These molybdenum rods have an impurity content of less than 50ppm, a low coefficient of thermal expansion to avoid deformation in chip processing, and to protect product precision and qualification rate.

Medical equipment field

Molybdenum rods are used in the medical field, including CT scanner X-ray tube targets, medical imaging electrodes, orthopedic/dental implants, pacemaker components, etc. Extruded molybdenum rods and Mo-La alloy rods are suitable for this purpose.

It has low impurities, high thermal conductivity, and a rotating belt life of 2,400 hours (three times that of cast molybdenum rods), which reduces equipment maintenance costs and ensures safety in use.

Glass and Rare Earth Smelting

Glass and rare-earth smelting require high temperature and corrosion resistance, and molybdenum rods are the traditional material needed in this field.

In glass manufacturing, molybdenum rods are used as melting electrodes (e.g. Samsung QD-OLED production line), which can work stably for a long period of time in the glass melt at 1300℃ without polluting the raw materials and with a long service life.

In rare earth smelting, molybdenum rods are used as electrodes with corrosion resistance to avoid corrosion by the rare earth melt and ensure smelting stability, suitable for Mo-La alloy rods and polished molybdenum rods.

Molybdenum rods with guaranteed precision

As a molybdenum rod manufacturer, COMBAT is equipped with a complete range of production and processing equipment: cold isostatic presses (CIP), hot isostatic presses (HIP), vacuum induction melting furnaces, vacuum sintering furnaces, vacuum distillation furnaces, vacuum hot pressing furnaces, high temperature sintering furnaces as well as other furnaces for the production of various metals.

The precision of molybdenum rods depends on the material purity and dimensional accuracy, which needs to be guaranteed by professional testing. Inductively Coupled Plasma Mass Spectrometry (ICP-MS) can accurately detect the content of trace elements, improve the accuracy of compositional analysis, and ensure compliance with scenario requirements.

Molybdenum rod industry development trend (2025-2026)

Continuous growth in demand: the rapid development of aerospace, semiconductor, and medical fields will push up the demand for molybdenum rods, the global market is steadily expanding, and extruded molybdenum rods are gradually increasing their market share due to their performance advantages. High purity molybdenum rods (≥99.99%) and customized specifications for molybdenum rods will become mainstream.

FAQs about Molybdenum rods

Q1: Do molybdenum rods oxidize easily?

Molybdenum rods do not oxidize easily at room temperature, but at high temperatures (>600℃) in an aerobic environment, an oxide film will form on the surface, which may flake off after long-term use.

Q2：What is the core difference between pure and alloy molybdenum rods?

Pure molybdenum rods have high molybdenum content (≥99.95%), high cost performance and versatility, but high temperature performance is general; alloy molybdenum rods add titanium, zirconium and other elements, high temperature performance, strength is better, but the cost is higher.

Q3：What is the impact of the purity of molybdenum rods on their performance?

Purity directly affects the high temperature resistance, electrical conductivity, corrosion resistance and mechanical properties: the higher the purity, the more stable performance, high temperature is not easy to soften, oxidation, longer life. Molybdenum rods with too many impurities can shorten their life by up to 60%.

Conclusion - Molybdenum rods empower modern industrial development

COMBAT is a reliable molybdenum rods manufacturer from China, for customized molybdenum rods solutions, please feel free to contact us for professional selection guidance and quotation service.
