Molybdenum is a high-performance refractory metal. Molybdenum plates and sheets are widely used in various scenarios that require high material durability and precision, from small electronic components to large medical equipment and aerospace components. COMBAT will analyze the core characteristics and advantages of molybdenum plates/molybdenum sheets, and dismantle their applications, to assist in purchasing decision-making and application implementation.

What is molybdenum plate/molybdenum sheet? What is the difference?

Molybdenum plate and molybdenum sheet are essentially high-purity molybdenum (≥99.95%) as raw material, through rolling, cutting, machining and other processes, the core difference lies only in the thickness.

According to industry practice, the thinner molybdenum materials are called molybdenum sheets, the thicker ones are called molybdenum plates, which simply means “sheets are thinner, plates are thicker”. This difference in thickness directly determines the difference in application scenarios. The quality of the molybdenum sheet has a direct impact on the performance and service life of the end product, so it is important to choose a quality molybdenum supplier, and COMABT is a reliable molybdenum sheet manufacturer with a global reputation.

Core properties of molybdenum plates/sheets

The outstanding performance of molybdenum plates/sheets is based on the properties of the molybdenum metal itself. The core highlights are the three dimensions of high temperature, mechanical and chemical properties, which are the key to its suitability for extreme industrial environments.

1. High-temperature performance:molybdenum's melting point is as high as 2623℃,molybdenum sheet in the high temperature environment of more than 1,000 ℃ can still maintain high strength, not easy to melt, deformation.
2. Mechanical properties:molybdenum plate / sheet tensile strength of up to 400-900MPa(with the thickness and processing technology changes), hardness of 200-250HV between, and a certain degree of ductility (elongation of 10-30%), to meet the different scenarios of the processing and use of needs.
3. Chemical properties:molybdenum sheet in a vacuum and inert gas atmosphere with good corrosion resistance, and no obvious outgassing phenomenon, high purity, especially for semiconductors and other areas of material purity requirements are extremely high.

The superposition of these characteristics makes molybdenum plate/molybdenum sheet an ideal material for precision thermal processing, high-end electronics manufacturing and other fields.

Detailed Characteristics and Parameters

Key performance indicators of molybdenum sheet/molybdenum sheet characteristics are summarized below:

Additional description of key parameters:

About oxidation resistance: molybdenum plate/molybdenum sheet can remain stable in air below 400℃, but oxidation is easy to occur after exceeding 400℃, so when used under high temperature working conditions, it needs to be matched with vacuum, inert gas and other protective atmosphere to avoid material oxidation failure.

About molybdenum sheet size customization: special molybdenum sheet size (such as ultra-wide, ultra-long, ultra-thin) can be provided to the supplier with drawings or specific needs, COMBAT molybdenum metal suppliers to provide custom processing molybdenum sheet services.

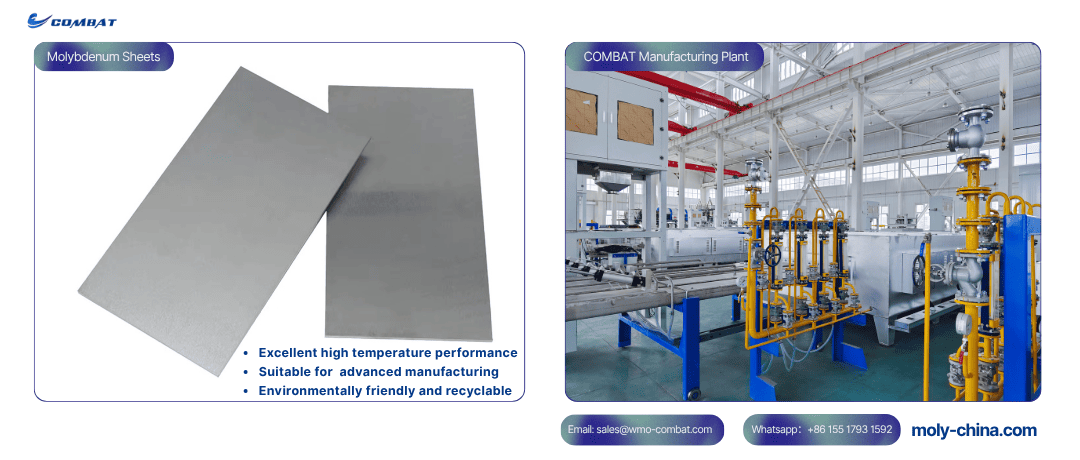

Core advantages of using molybdenum plates

Excellent high temperature performance

Molybdenum sheet/molybdenum sheet has a melting point of up to 2623°C, making it one of the few metal materials that can work stably in high-temperature environments of more than 1000°C, which far exceeds the tolerance temperature of ordinary steel, aluminum alloys and other materials.

Molybdenum foils are indispensable in energy, furnace manufacturing and other fields where extreme temperatures are required, not only to ensure the structural stability of the components, but also to avoid equipment failures due to high-temperature deformation and melting, and to reduce maintenance costs. Molybdenum and its alloys are especially critical candidates in demanding applications such as advanced nuclear energy systems and aerospace.

Suitable for advanced manufacturing

Molybdenum is one of the core materials for electronics and semiconductors because of its excellent electrical conductivity and dimensional stability, as well as its high purity and lack of significant outgassing.

Whether it is electrodes and interconnections for thin-film transistors (TFTs) and LCD panels, or substrates and heat sinks for high-performance chips, molybdenum plates/molybdenum sheets play a stabilizing role in enhancing the performance and service life of electronic equipment and meeting the precision requirements of high-end electronics manufacturing.

Improvement of equipment life

Molybdenum sheets have good wear resistance, corrosion resistance and thermal fatigue resistance, and can effectively resist the wear and tear, chemical erosion and temperature alternation in the industrial environment.

The service life of equipment components made from these alloys is much longer than that of ordinary metal materials, which reduces the frequency of component replacement, maintenance costs and downtime losses, and realizes long-term cost savings for the enterprise. High-performance molybdenum alloys, in particular, are characterized by high-temperature stability and toughness, which further extends the service life of equipment.

Lightweight

Compared to other refractory metals such as tungsten and tantalum, molybdenum has a relatively low density (10.2 g/cm³), but is no less strong and has an excellent strength-to-weight ratio.

In weight-sensitive applications such as aerospace and precision electronics, the use of molybdenum sheet/molybdenum plates ensures that the strength of the component is maintained while reducing the overall weight and improving the overall performance of the product.

Environmentally friendly and recyclable

Molybdenum is a 100% recyclable metal. Recycled molybdenum does not lose its core properties and can be reprocessed into molybdenum plates and sheets, thus realizing the recycling of resources.

This characteristic is in line with the current industrial trend of “green manufacturing and sustainable development”, which not only reduces the waste of resources, but also lowers the cost of raw materials and improves the competitiveness of products in the market.

Industrial applications of molybdenum sheet

The excellent performance of molybdenum sheet makes it widely used in special steel, semiconductors, electronics, solar energy, medical and other industrial fields, each of which is closely integrated with its core characteristics to solve the industry's core pain points.

Specialty Steel

In the steelmaking process, the addition of molybdenum plate can significantly improve the strength, hardness, wear resistance and corrosion resistance of steel, so that the steel can be adapted to more demanding use scenarios. Alloy steel and stainless steel are the main areas of molybdenum consumption, accounting for 50% and 25% of total molybdenum consumption in the steel sector, respectively.

In addition, the use of molybdenum sheet in the steel field also includes the manufacture of steelmaking molds, furnace components, etc., by virtue of its high-temperature and wear-resistant properties, to extend the service life of the molds and furnaces, and reduce production costs.

Semiconductor Manufacturing

From consumer electronic chips to industrial control system chips, the application of molybdenum sheet/molybdenum plates in semiconductor manufacturing has a direct impact on the performance and reliability of the chips.

In high-performance chip production, molybdenum sheets are used as a substrate for thin-film transistors and, thanks to their excellent dimensional stability, ensure the precise manufacture of transistors;

At the same time, molybdenum sheet can be used as a heat sink to encapsulate the chip to quickly dissipate the heat generated when the chip is in operation, avoiding overheating and damage to the chip.

Electronics

In the field of electronics, thin molybdenum sheets are widely used, the core focus in the manufacture of high-performance electronic equipment, the core advantage lies in its excellent conductivity and heat dissipation.

In display devices such as LCD panels and OLED screens, molybdenum wafers are used as electrodes and interconnections to enhance the display effect and screen life;

In all kinds of electronic components, molybdenum sheets can be used as heat dissipation parts to quickly dissipate the heat generated during the work of components, avoiding aging and damage due to overheating, and guaranteeing the long-term stable operation of electronic equipment.

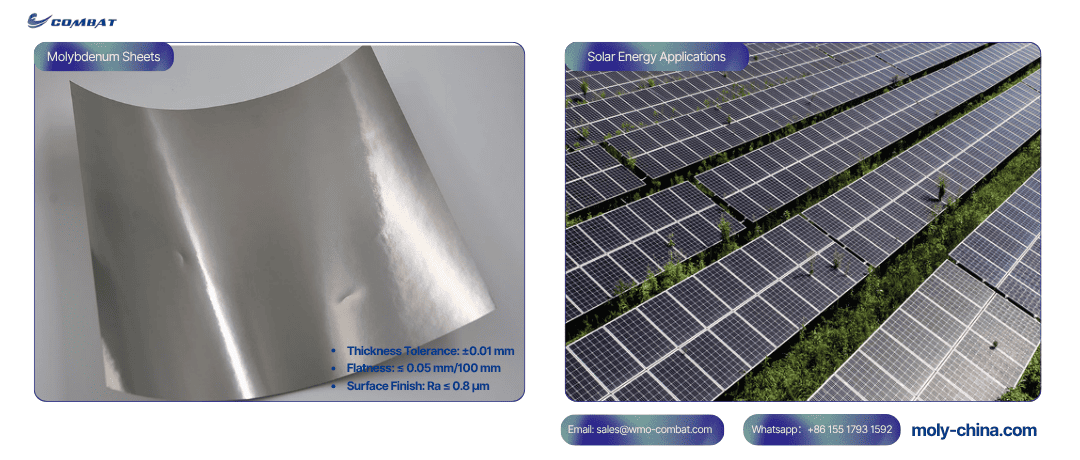

Solar cell production

With the rapid development of the renewable energy industry, molybdenum sheet is increasingly widely used in the production of thin-film solar cells, and has become a key material for improving the efficiency of solar cells.

Molybdenum sheet is mainly used as the back contact and reflection layer in solar cells, its excellent conductivity can ensure the stable transmission of current inside the cell, reducing energy loss; at the same time, the reflective properties of molybdenum sheet can enhance the efficiency of light absorption, and thus improve the energy conversion efficiency of solar cells.

In addition, molybdenum foils have good radiation resistance, which can maintain stable performance under long-term solar radiation, extend the service life of solar cells, and help the new energy industry's low-cost, high-efficiency development.

Medical imaging equipment

In the medical field, molybdenum sheet, with its high atomic number and high density, has become the core component material for medical imaging equipment such as X-ray tubes and CT scanners.

Molybdenum sheet can be used to manufacture shielding components for imaging equipment, which can effectively collimate X-rays and reduce scattered rays, ensuring the clarity and precision of diagnostic images while reducing the radiation exposure of patients and enhancing the safety of medical examinations.

Meanwhile, the strong durability of molybdenum plates can extend the service life of medical imaging equipment, reduce equipment maintenance costs, and provide stable and reliable imaging solutions for medical institutions.

Aerospace and Nuclear Energy

In the aerospace industry, molybdenum sheet and molybdenum alloy sheet can be used to manufacture rocket nozzles, gas ducts, nozzle liners and other components, which are suitable for space and high-temperature flight environments due to their excellent high-temperature strength and corrosion resistance.

In the field of nuclear energy, molybdenum and its alloys are key candidates for space nuclear reactor cladding and core structure materials due to their high melting point, high thermal conductivity, and compatibility with alkali metals.

For example, the nanostructured molybdenum-zirconium carbide alloy developed in China has excellent strength and toughness at both room and high temperatures, which is better than the commonly used TZM alloy, and provides reliable material support for advanced nuclear energy systems.

High purity molybdenum sheet purchasing guide

For buyers and engineers, the core of choosing the right molybdenum plate/molybdenum sheet is to match the needs of their own application scenarios, focusing on key factors such as purity, size, grade, and so on, in order to avoid purchasing risks and ensure material suitability.

Priority attention to purity: ≥99.95

The purity of molybdenum sheet/molybdenum plates has a direct impact on the stability of their performance. Especially for precision applications such as semiconductors, electronics, and medical care, it is important to select high-purity molybdenum with a purity of ≥99.95%.

Low purity molybdenum contains impurities that may affect the material's electrical conductivity, thermal stability and corrosion resistance, leading to end-product failures, so when purchasing, you need to ask the supplier to provide a purity test report.

Size selection: matching load and thermal requirements

Molybdenum plate/sheet has a conventional thickness range of 0.05~50.0mm, a width of 50~60mm, and a length of 100~3000mm. When purchasing, you need to choose the right size according to the load and temperature requirements of your application.

For example, high-temperature furnace components require thicker molybdenum sheets to ensure structural strength, while electronic components are suitable for thinner molybdenum sheets, taking into account lightweight and conductivity.

Selection of grades

Molybdenum plates/sheets are divided into three main grades, the performance of different grades varies greatly, and should be selected according to the operating conditions:

1. Standard molybdenum: purity ≥ 99.95%, suitable for conventional high temperature, electronic scenes, cost-effective, the widest range of applications.
2. Molybdenum lanthanum (MoLa): lanthanum element added, high temperature performance and processing performance is better, suitable for high temperature, high load working conditions.
3. TZM alloy (titanium-zirconium-molybdenum alloy):molybdenum-based high-temperature alloy, the composition of 0.50%titanium, 0.08% zirconium, 0.02% carbon, high-temperature strength, creep resistance is far superior to pure molybdenum, recrystallization temperature is higher for extreme high temperature, high stress scenarios, such as aerospace and nuclear energy fields.

Molybdenum sheet surface treatment

In the molybdenum sheet manufacturing process, COMBAT, as a leading molybdenum metal manufacturer in China, has 3 main types of surface treatment: hot rolled, cold rolled and polished, with different treatments suitable for different application scenarios:

1. Hot rolled:high surface roughness, suitable for furnace parts, steelmaking molds and other scenarios that do not require high surface accuracy;
2. Cold rolled:flat surface, high precision, suitable for electronics, semiconductors and other scenes with certain requirements on surface quality;
3. Polished:smooth surface, very high precision, suitable for medical imaging equipment, precision electronic components and other high-end scenes.

Cooperation with COMBAT - Stable supply

Choosing a high quality molybdenum sheet/molybdenum sheet supplier is the key to ensure material quality, delivery lead time and technical support.As a trusted molybdenum supplier in China, COMBAT specializes in supplying high quality molybdenum sheet, molybdenum sheet, and molybdenum foil products to various countries and industries around the world.

Why choose COMBAT?

1. High purity guarantee:All molybdenum plates/sheets are produced with ≥99.95% high purity molybdenum raw materials, and can provide authoritative purity test reports, suitable for various precision applications;
2. Dimensional accuracy and stability:strict control of the production process to ensure that the thickness, width and length of the molybdenum plate/molybdenum sheet precision, while supporting customized dimensions to meet individual needs;
3. Customized services: according to the customer's application scenarios, we can provide customized surface treatment, processing and molding services to meet the special needs of different industries;
4. Efficient delivery:With a perfect supply chain system, we can realize fast delivery throughout Australia, shorten the procurement cycle and guarantee the production schedule;
5. Professional technical support:with experienced technical team, we can provide customers with selection guidance, application solutions, and solve all kinds of problems in the process of procurement and use.

Frequently Asked Questions (FAQ) - Molybdenum sheet/plate

Q: What are the factors affecting the price of molybdenum plate/molybdenum sheet?

The main factors affecting the price of molybdenum plate / molybdenum sheet are 5 points:

1. Molybdenum sheetpurity：the higher the purity, the higher the price.
2. Thickness and size：special size (ultra-thin, ultra-thick, ultra-wide) customized products are more expensive.
3. Processing technology: polishing, customized processing processes will increase costs.
4. Global molybdenum market：molybdenum raw material price fluctuations will have a direct impact on molybdenum plate / molybdenum sheet price.
5. Procurement batch：batch purchase of molybdenum plate can obtain certain price concessions.

Q: What do I need to pay attention to when molybdenum plate is in a high-temperature environment?

Molybdenum sheet is prone to oxidation in air above 400°C. Therefore, when used at high temperatures, it needs to be paired with a protective atmosphere of vacuum and inert gases (e.g. argon, nitrogen) to avoid oxidized molybdenum sheets from failing. Extreme high temperature scenarios suggest the use of TZM alloy sheet or other high-performance molybdenum alloy plate.

Q: Is the recycling value of molybdenum plate/molybdenum sheet high?

Very high. Molybdenum is a 100% recyclable metal. Recycled molybdenum does not lose its core properties and can be reprocessed into molybdenum plates and sheets at a much lower recycling cost than virgin molybdenum.
